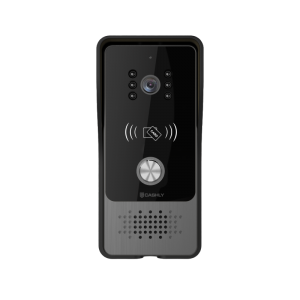

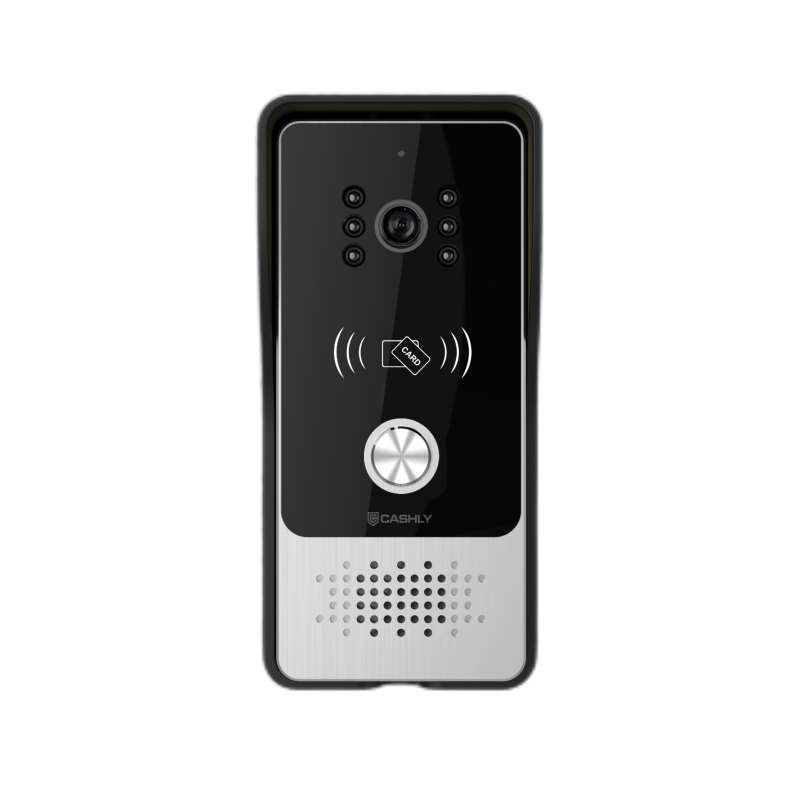

Analog Villa Intercom System Kit JSL1D
Analog Villa Intercom System Kit JSL1D
• Metal main body acrylic front panel with manual button, Silver&Black color.
• Surface mounted, with rain cover and angle bracket; Anti vandal.
• Camera lens: To provides a clear picture of the outside view. Wide angle 110°.
• European style design, elegant and noble.
• Infrared LED: Built-in infrared LEDs allow you to identify visitors in poorly lit areas.
• Voice reminder and motion detection.
| Work voltage: | DC13V~14V |
| Power consumed: | static state:<30mA work:<300mA |
| Working atmosphere range | -30°c ~ +50°c |
| Working humidity range | 45%-95% |
| Camera lens: | 1/3" CCD |
| Lens: | 92 degree wide-angle |
| Horizontal resolution: | 400 CCIR Line |
| Least lamination intensity: | 0.3 Lux |
| Infrared diode: | Installed |
| Video- out: | 1 Vp-p 75 ohm |
| Material of frame: | Aluminum alloy |
| Installation | Surface mount |
| Color | Silver/Black |
| Waterproof Rating | IP65 |
• Function of calling, video talk-back, unlocking and so on.
• Monitoring Door station function from Indoor unit available.
• Single button operation, simple and convenient.
• Unlock function by password, ID or IC is optional.
• Double Ding-Dong ring.
• Built-in power supply and external power supply is optional.
• Built-in LED fill light, night-vision lighting functions
