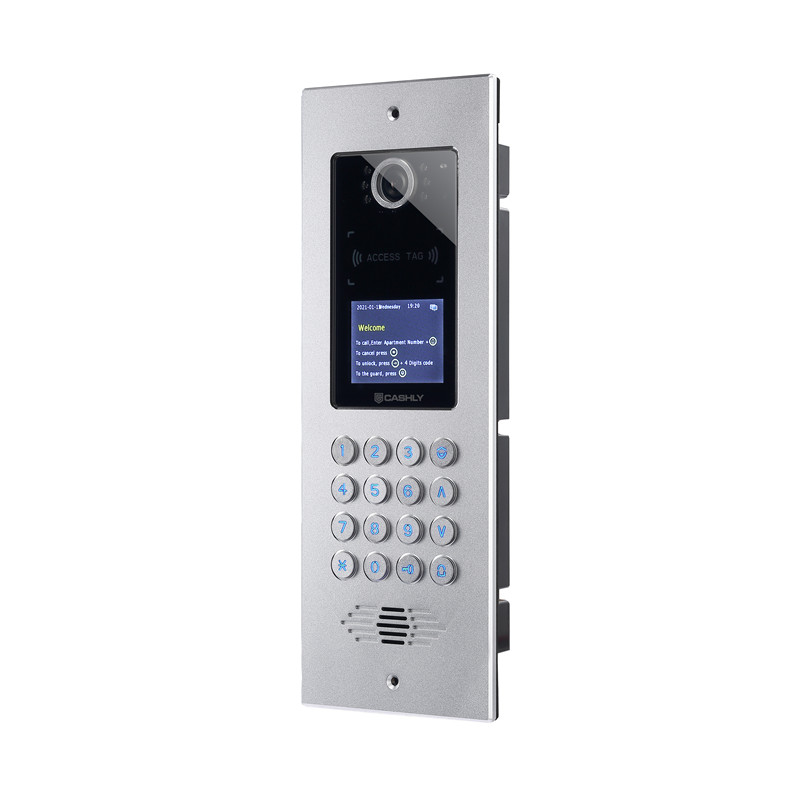

Compact Touch Button Video Doorphone Model I1T

Compact Touch Button Video Doorphone Model I1T

Short Description:

Visitors call indoor monitors through Outdoor station, and residents can make clear video calls through the indoor monitor with visitors. Digital audio & video transmission is more stable and reliable. Including old buildings with 2-wire non-polarity connection, Existing wiring in the house without re-wiring. Easy installation central power supply without using adapter. Power and intercom signal is transmitted in 2-wire. Visitors recording and leaving message option. Also speech for viewing and speaking at the same time, an option to read an elevator from the indoor monitors or send an elevator to a visitors. Possibility to add IP cameras to the system. The system in English /Different language is easy to install.


Product Detail

Product Tags

Product Fetures

• Luxurious Silver Aluminium alloy panel
• Up to 120 apartments
• Resistant to vandalism and outdoor conditions
• Basic control of an illuminated TFT display in 2.8/ 4.3 "in English / Different language
• Including the visitor's guidance in English / Different language
• Includes accessibility for the deaf
• Leaving an automatic notification to all tenants about changing the login code.
• High-quality IP color camera with WDR built-in 1080 line IP resolution for day and night
• A unique camera lens for our company 120 degrees WDR built-in anti-glare to see the entire entrance space is special for the disabled and children.
• Recording the visitors and leaving a message.
• Activation of an electric or electromagnetic lock
• Dry contact NO or NC
• On-time door opening direction with indelible memory,
• Maintains programming codes during power outages.
• Infrastructure 2 tendon 0.5
• Operating temperature -40 ℃ - + 50 ℃
• Convenient to operate by the tenant.
• Entry option by proximity reader
• Possibility of entry by a number of digit codes
• Option to open a door by a sticker for a mobile phone
Dimensions: width 115 length 334 depth 50 mm

Specification

System Linux
Front panel Alum+Tempered Glass
Color Black & Silver
Camera CMOS; 4M Pixels
Light White Light
Screen 2.8-inch TFT LCD
Button Type Mechanical Pushbutton
Capacity of Cards 40,000 pcs
Speaker , 1.0W/2.0W
Microphone -56dB
Power support 12~48V DC
RS 485 Port Support
Gate Magnet Support
Door Button Support
Standby Power Consumption 4.5W
Max Power Consumption 12W
Working Temperature -40°C ~ +50°C
Storage Temperature -40°C ~ +60°C
Working Humidity 10~90% RH
IP Grade IP54
Interface Power In; RJ45; RS485; 12V Out; Door release button; Door open detector; Relay out;
Installation Embedded/Iron Gate
Resolution 1280*720
Dimension (mm) 115*334*50
Embedded Box Dimension (mm) 113*335*55
Working Current 500mA
Door Entry IC card(13.56MHz), ID card(125kHz), PIN code
Network 10M/100M Auto-Ngegotiation
Horizontal Viewing  Angles 120°
Audio SNR ≥25dB
Audio Distortion ≤10%

Detail

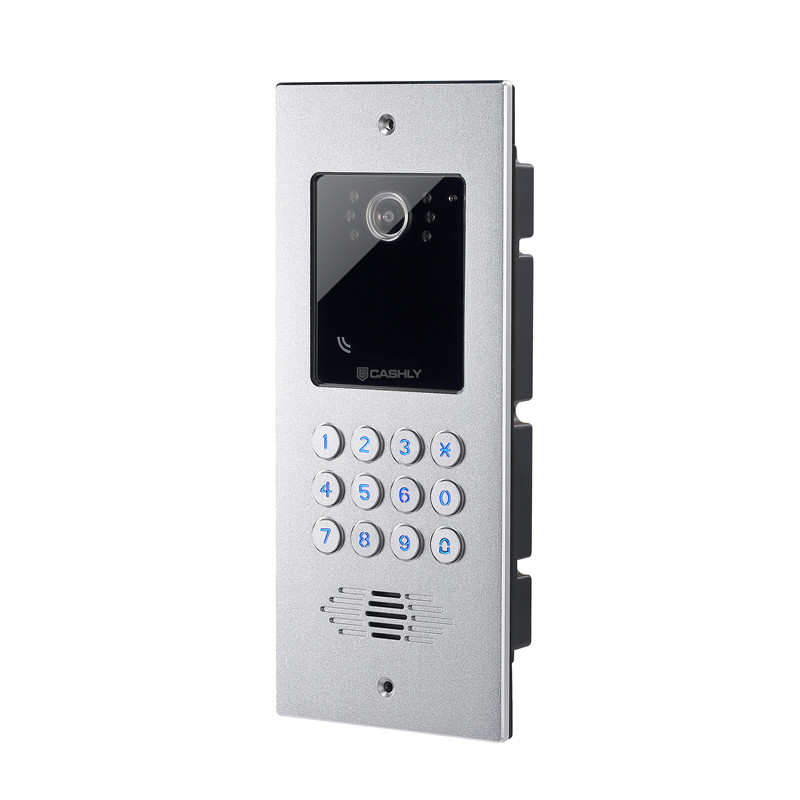

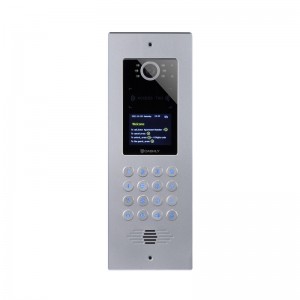

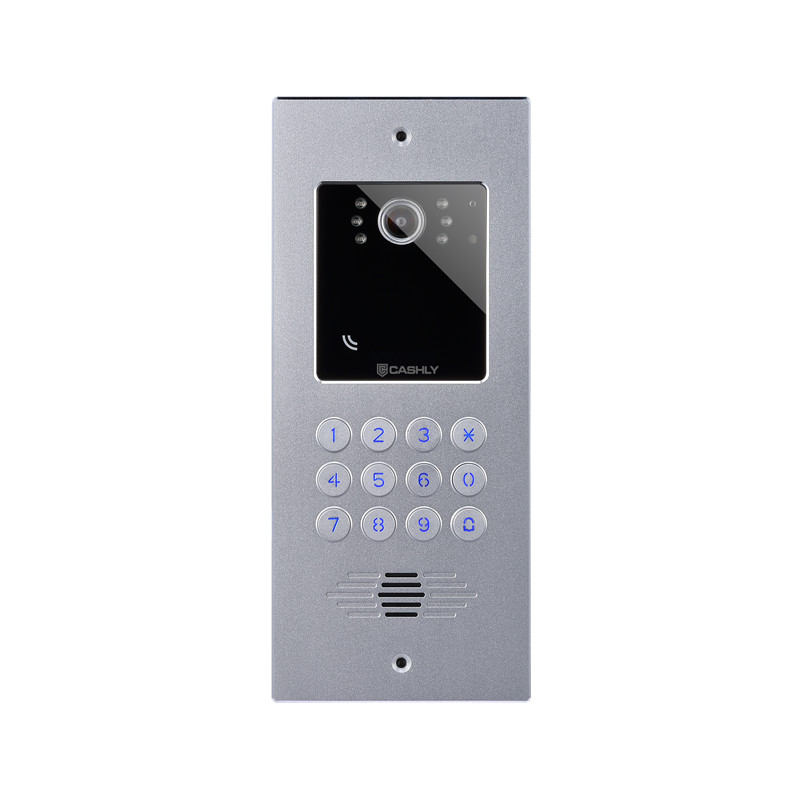

Aluminum IP Outdoor Station
2 -Wire Villa IP Outdoor Station
High building IP Outdoor Station
2 -Wire IP Outdoor Station (1)
