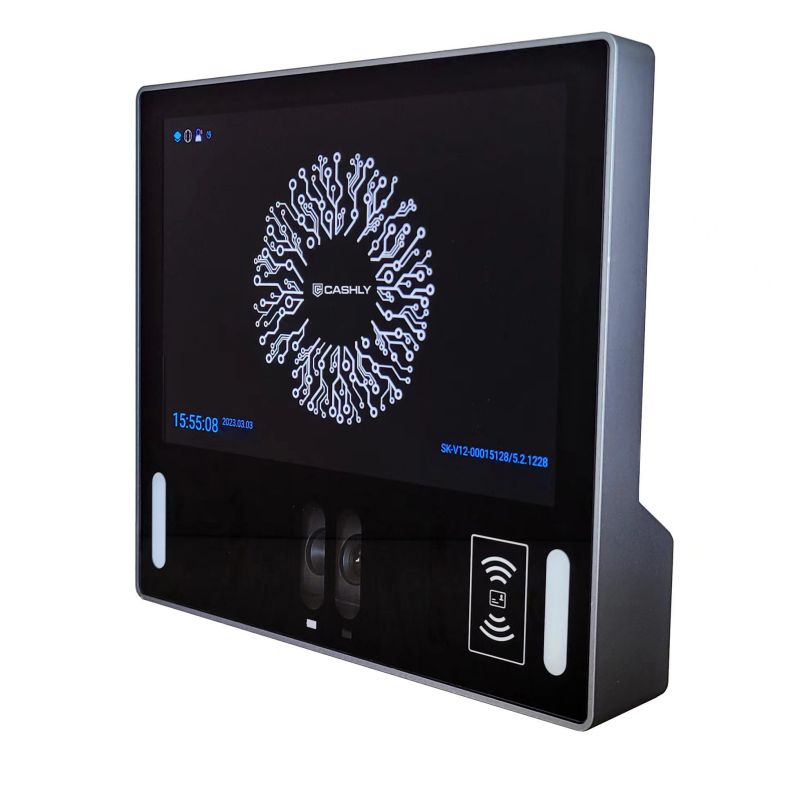

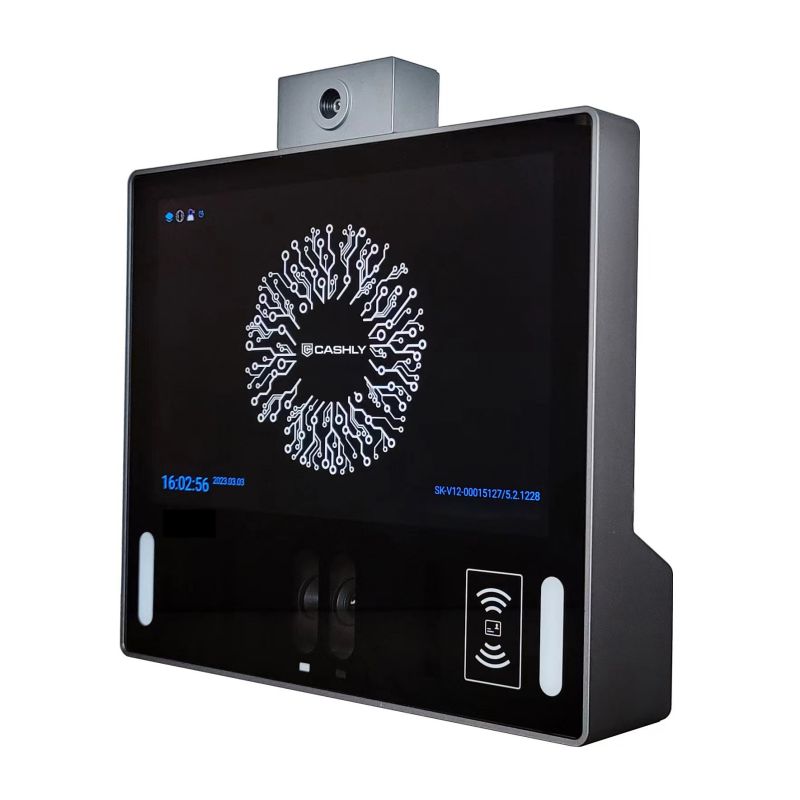

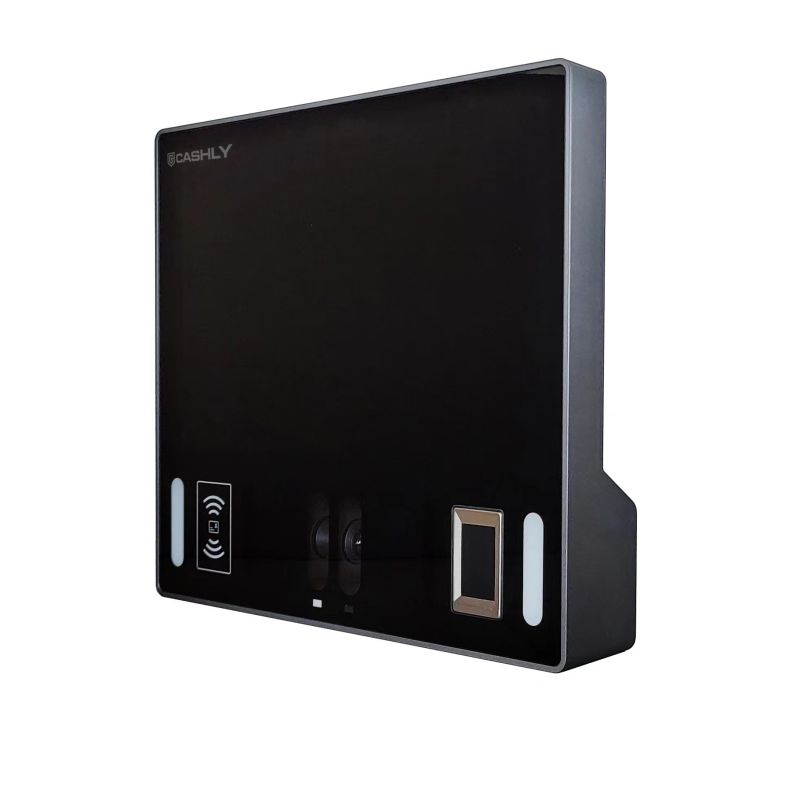

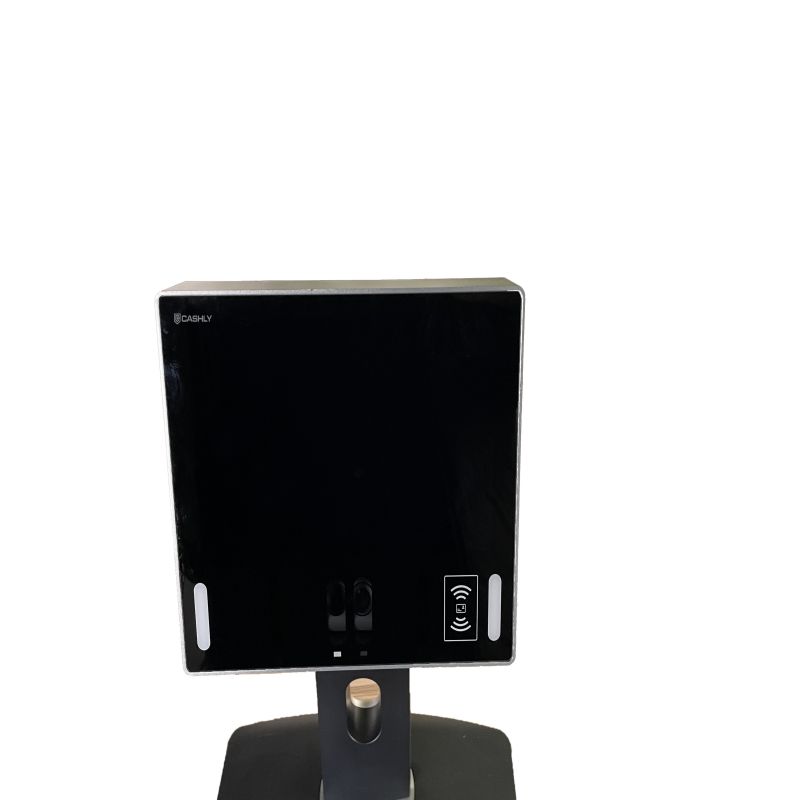

Iris face fusion recognition AI terminal F2
Iris face fusion recognition AI terminal F2
AI Face Frequent recognition AI Terminal F12 is a iris fusion recognition terminal based on the independent embedded AI computing platform, AI intelligent recognition terminals with multi -mode identity recognition, combining iris recognition, face recognition, iris face fusion recognition, Smart eye tracking and fingerprint recognition.
• AI intelligent tracking: intelligent eye tracking and
• positioning
• Iris face synchronized and parallel collection and recognition
• Long-distance binocular iris recognition
• Color iris recognition
• Multimodal identification
• 8 "high IPS LCD touch screen
• Rapid identification: 10,000 class, high throughput
• applications
|
Terminal function |
System function | Iris face fusion recognition, iris recognition, face recognition |
| Interaction mode | Screen display, voice prompt, status LED indication | |
| Work pattern | Human body intelligent sensing, someone automatically wake up, no one automatically sleep | |
| Sensing distance | About 120cm | |
| Connection mode | Double row mother seat interface | |
| Power supply mode | 12V / 3A Power Adapter | |
| Infrared LED band | 850nm | |
| InfraR LED quantity | Four, two on the left and right sides | |
| Infrared lighting safety | IEC 62471 Optical Biosafety of Light and Light Systems,IEC60825-1 |
|
Dimensions |
Height: 239mm Width: 130mm thickness: Upper part thickness, 16mm Middle-section thickness, 21mm Bottom thickness, 36mm |
|
| Case material | Aluminum alloy, 6061 | |
| Surface preparation | Anodic ash oxidation | |
| way to install | Four M3 threaded holes on the end back | |
|
Registration recognition performance |
Registration mode | Default iris binocular registration and face registrationSupport for the specified left or right eye registration |
| Recognition mode | Iris face fusion recognition, dual recognition, iris recognition, face recognitionIris double eyes were collected and identified in parallel, supporting any eyes, both eyes, and left
Eye and right eye recognition |
|
| Iris recognition distance | Approximately 45-75cm | |
| Face recognition distance | Approximately 45-120cm | |
| Iris recognition accuracy | FAR<0.0001%, FRR<0.1% | |
| Face recognition accuracy | FAR<0.5%, FRR<0.5% | |
| Iris registration time | On verage less than 2 seconds | |
| Iris Recognition time | On verage less than 1 second | |
| Face registration time | On verage less than 2 seconds | |
| Face recognition time | On verage less than 1 second | |
| User capacity | For 5,000 people (standard version), it can be expanded to 10,000 people | |
| Image quality | In line with the international standard ISO / IEC19794-6:2012, national standard GB / T 20979-2007 | |
| Behaviour of electricity | Working voltage | 12V |
| Standby current | About 400mA | |
| Working current | About 1,150 mA | |
| Run the platform | Operating system | Android7.1 |
| CPU | RK3288 | |
| Run memory | 2G | |
| Dedicated space | 8G | |
| Work environment | Ambient temperature | -10℃ ～ 50℃ |
| Ambient humidity | 90%, no dew | |
| Suggest the environment | Indoor, avoid direct sunlight |
Iris face fusion recognition AI terminal is based on embedded AI computing platform to build AI
intelligent recognition terminals of iris face deep fusion recognition, multi-modal identity. It integrates iris recognition, face recognition, fingerprint recognition and other functions in one by using iris face synchronized and parallel collection and recognition.
It can be widely used in various large user groups, high throughput, and accurate identification application scenarios, such as fast customs clearance, aviation, railways, channels and access control management
F12 supports two working modes: cloud mode and stand -alone mode. The cloud mode is suitable for the application requirements of user groups at all levels in small, medium, and large levels. It only needs to register once to realize the automatic distribution of data inter -devices. The management of thousands of equipment under the cloud model is as simple as managing a device. Data management and equipment management set up automatically.
F12 can be connected to the look ID through RJ45 or WIFI-Eye Drink Cloud-Iris multi-biological characteristics fusion to identify the cloud platform, and the user's centralized registration, group management, data distribution, and Duanyun data are automatically synchronized; the terminal can be bound to cloud accounts, packets, and packets. Management, equipment group and user group data synchronization, automatic upgrade of terminal software, etc.
