Smart Door Lock- Semi-automatic lock JSL1808-F

Smart Door Lock- Semi-automatic lock JSL1808-F

Short Description:

JSL1808-F Technical parameters of password lock

Through PVD surface treatment technology, the product is designed as the third-generation handle structure, with a complete product inspection process, new positioning piece technology, circuit board advantages and ultra-low power consumption, stable and reliable quality, trustworthy.


Product Detail

Product Tags

JSL1808-F

•Metal frame
•Class 5A drilled panels
•Patented clutch design
•Highly integrated internal structure design
•Customizable door magnets
•PC material one-time hot press molding: high temperature/low temperature resistance, resistance resistance
•Metal frame and handle painting process: primer + color paint + varnish glaze
•Door lock networking
•Semiconductor fingerprints
•Touchscreen input
•Door opening app for your phone
•Numeric code to open the door
•Can be redeveloped
•Suitable for hotels, apartments, rental houses

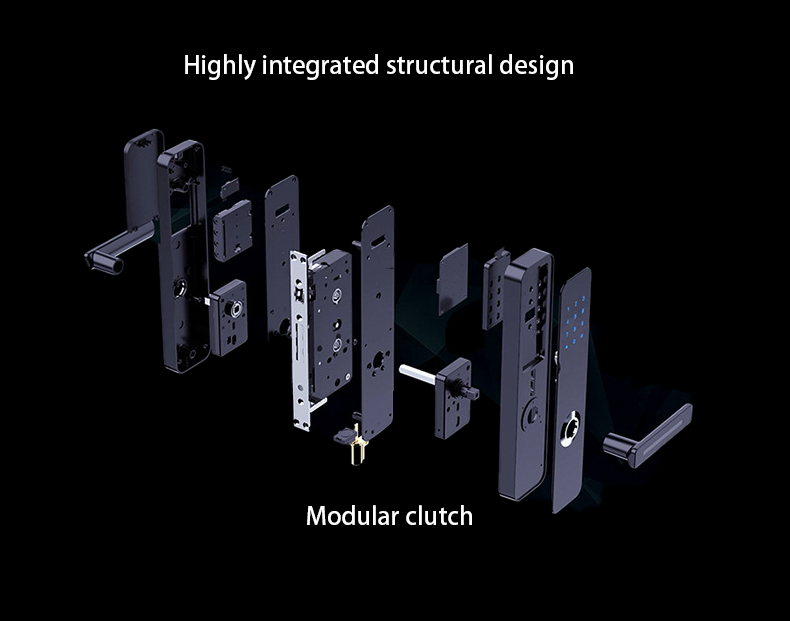

Modular clutch device

Product Fetures

Specification
Outer lock size 308*71*25
Panel material High quality aluminum alloy
Surface technology Fuel injection + electrophoresis
Fit the lock body 60526068
Door thickness requirements 40-110mm
Lock head Super Class B mechanical lock
Operating temperature -20°C-+60°C
Networking mode BluetoothLoraNb-iotchoose one from three
Power supply mode 4 alkaline batteries
Low voltage alarm 4.8V
Standby current 60μm
Operating current 200mA
Unlock time 1.5s
Key type Capacitive touch key
Fingerprint head type Semiconductor(ZFM-10)<0.001%<1.0%
FFR <0.001%
FAR <1.0%
Number of passwords Support 150 groups (unlimited dynamic password)
Card type M1 card
Number of IC cards 200 sheets
The way to open the door App,Code,IC card,Mechanical key
Alternative Tuya,TTLOCKLoraNb-iotchoose one from four
Icon Graffiti
Door lock available functions
安全

Enhanced Security

Topology Hiding

Topology Hiding

VoIP Firewall

VolP Firewall

Extensive SIP Interoperability

Extensive SIP Interoperability

License Scalability

License Scalability

Transcoding

Transcoding
