China Smart Door Lock- Semi-automatic lock JSL2108 Factory and Manufacturer

Smart Door Lock- Semi-automatic lock JSL2108

Short Description:

JSL2108-F Technical parameters of password lock

Through PVD surface treatment technology, the product is designed as the third-generation handle structure, with a complete product inspection process, new positioning piece technology, circuit board advantages and ultra-low power consumption, stable and reliable quality, trustworthy.

Send email to us

Product Detail

Product Tags

JSL2108

•Metal frame(high quality aluminium alloy)
•Patented clutch design
•Highly integrated internal structure design
•Customizable door magnets
•PC material one-time hot press molding:high temperature/low temperature resistance,resistance resistance
•Metal frame and handle painting process:primer+color paint+varnish glaze
•Door lock networking
•Door opening app for your phone
•Numeric code to open the door
•Can be redeveloped
•Suitable for families,villas,hotels,apartments,rental houses

Product Fetures

Specification：

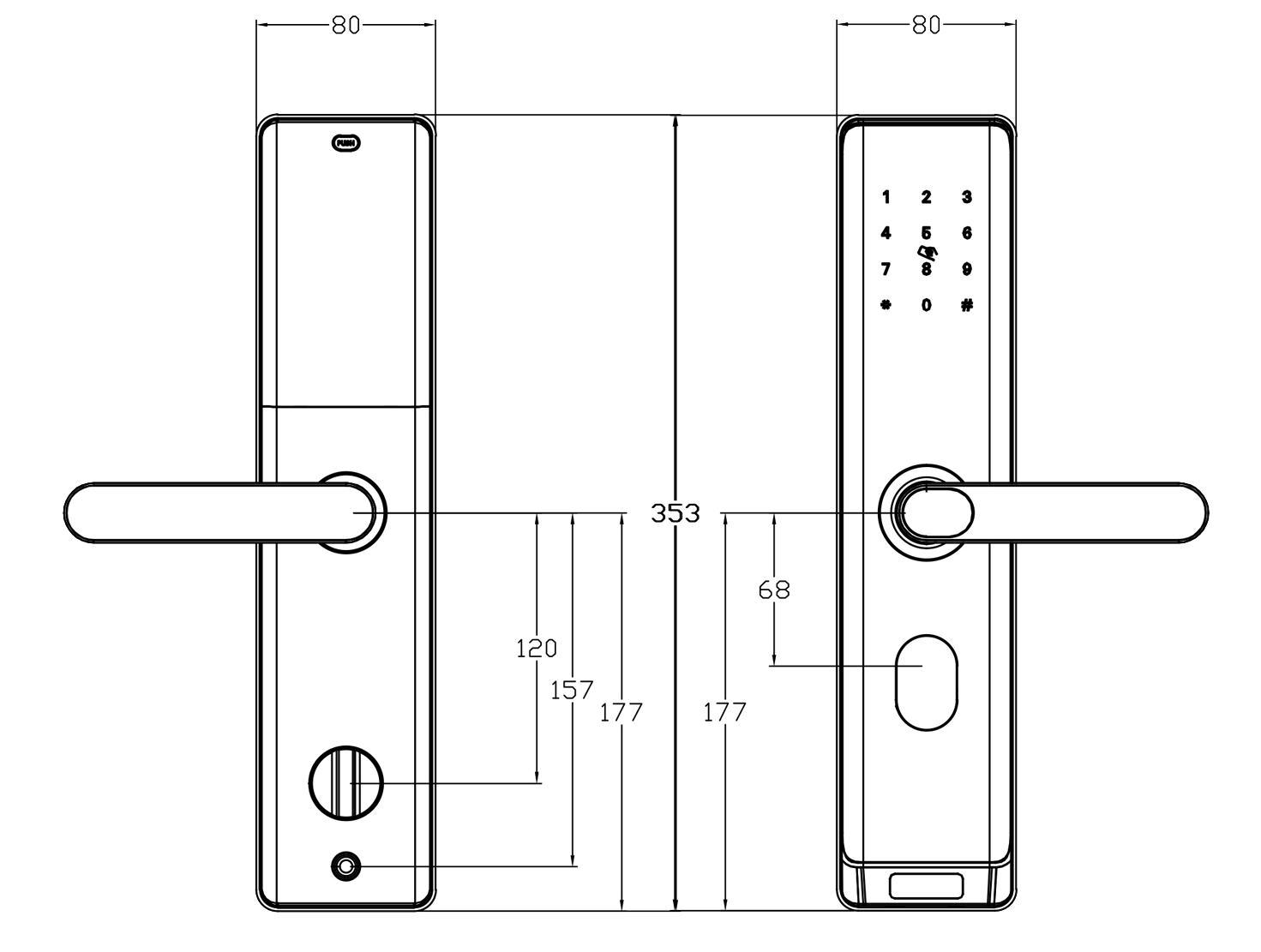

Outer lock size	3528025
Panel material	High quality aluminum alloy
Surface technology	Fuel injection + electrophoresis
Fit the lock body	6068
Door thickness requirements	40-110mm
Lock head	Super Class B mechanical lock
Operating temperature	-20°C-+60°C
Networking mode	Bluetooth、Lora、Nb-iot（choose one from three）
Power supply mode	4 alkaline batteries
Low voltage alarm	4.8V
Standby current	60μm
Operating current	＜200mA
Unlock time	≈1.5s
Key type	Capacitive touch key
Number of passwords	Support 150 groups (unlimited dynamic password)
Card type	M1 card
Number of IC cards	200 sheets
The way to open the door	App,Code,IC card,Mechanical key
Alternative	Tuya,TTLOCK、Lora、Nb-iot（choose one from four）
